Hand Lever Butterfly Valve

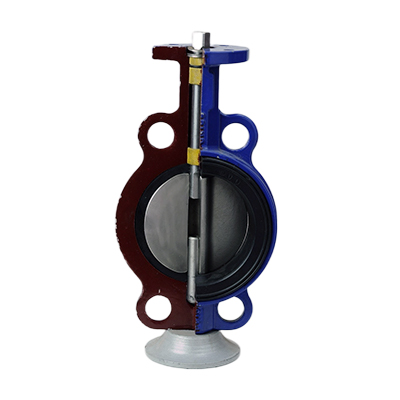

Model 621D7A1X-10/16 Hand Lever Butterfly Valve


621D butterfly valve without backrest

Features

  • Normal Diameter(mm): DN50-DN150
  • Normal Diameter(Mpa): PN1.0-1.6MPa
  • Applicable medium: Water,Sea Water,Sewage,Oil,Air,Food,Weak acid and soda etc.
  • Applicable temperature: -10~110℃

PARAMETERS


Dimensions

Dimensions


Standard

H2

H3

Φd

ΦD

ΦD1

L1

L2

L

Weight(KG)

DN50

180

70

20

125

96.5

42

32

176

2.52

DN65

192

80

20

145

110

45

47

176

3.09

DN80

205

92

20

160

124

45

65

176

3.63

DN100

229

107

20

180

158

52

91

215

5.58

DN125

250

121

20

210

187

55

112

260

8

DN150

260

134

23

240

214

56

146

260

9.08

Materials List


Name

Materials

Body

Cast Iron,Ductile Iron

Disc

Ductile Iron Coated by Nylon,Ductile Iron Coated by   Nickel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316L,Duplex   Stainless Steel,Aluminum Bronze

Seat

EPDM,NBR,Wear-resistant EPDM,High-temperature   EPDM,Fluorine Rubber,Silicon rubber

Stem

Carbon Steel 45#,Stainless Steel 304,Stainless Steel 316,Stainless Steel 416

OEM Custom Valve Solutions

Agile Valves Co., Ltd. is one of the most successful and high quality OEM valves manufacturers in China. Our excellent valve manufacturing facilities located at our Shanghai valve factory and Taiwan valve factory are manufacturing and exporting stainless steel butterfly valves of all types all around the world. If you are looking for high-performance butterfly valves such as hand lever butterfly valve, turbine butterfly valve, etc, we are here to provide you with the best selection of our valves. Besides several types of stainless steel butterfly valves, our manufacturing facilities in Shanghai and Taiwan also produce and export high quality flange ball valve, multi way ball valve, one-piece ball valve, two-piece ball valve, three-piece ball valve, or V flow control ball valve, safety valves, carbon steel valves, low temperature valves, stainless steel valves, angle seat valves, flanged swing check valves and a variety of other OEM valves on demand. Apart from the mainstream valves, we also provide valve accessories such as Quick Connectors, Pipes and Unions. All our products meet the international standards as ISO, ANSI, API, DIN, GB, JIS, etc. Please visit our valve product pages for more information on our valves, Shanghai valve factory and Taiwan valve factory.
