Turbine Butterfly Valve

Model 623D341X-10/16 Turbine Butterfly Valve

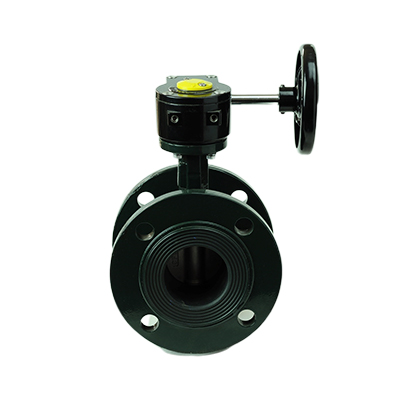

623D Flanged turbine butterfly valve

Features

  • Normal Diameter(mm): DN50-DN600
  • Normal Diameter(Mpa): PN1.0-1.6MPa
  • Applicable medium: Water,Sea Water,Sewage,Oil,Air,Food,Weak acid and soda etc.
  • Applicable temperature: -10~110℃

PARAMETERS


Dimensions

Dimensions


Standard

∮A

∮D

∮C

A

B

D0

n-∮d

L

Weight (KG)

PN10

PN16

PN10

PN16

DN50

164.0

125.0

125.0

55.0

280.5

148.0

136.00

4-∮18

4-∮18

108.5

9.24

DN65

181.0

145.0

145.0

67.0

291.5

148.0

136.00

4-∮18

4-∮18

112.0

9.59

DN80

195.0

160.0

160.0

83.0

307.5

148.0

136.00

4-∮18

8-∮18

114.0

10.16

DN100

215.0

180.0

180.0

108.0

330.0

148.0

136.00

8-∮18

8-∮18

128.0

11.95

DN125

245.0

210.0

210.0

126.0

357.0

148.0

136.00

8-∮18

8-∮18

141.0

15.4

DN150

280.0

240.0

240.0

160.0

400.5

148.0

136.00

8-∮22

8-∮22

141.0

18.69

DN200

337.0

295.0

295.0

206.0

477.0

193.0

263.00

8-∮22

12-∮23

154.5

30.7

DN250

404.0

350.0

355.0

250.0

539.0

193.0

263.00

12-∮23

12-∮26

166.0

50.36

DN300

445.0

400.0

410.0

305.0

611.0

210.0

263.00

12-∮23

12-∮26

180.0

56.41

DN350

505.0

460.0

470.0

348.0

835.0

210.0

363.0

12-∮23

16-∮26

190.0

74.51

DN400

565.0

515.0

525.0

395.0

915.0

280.0

377.0

12-∮26

16-∮30

216.0

116.7

DN450

615.0

565.0

585.0

447.0

960.0

280.0

377.0

12-∮26

16-∮30

222.0

133.2

DN500

670.0

620.0

650.0

500.0

1020.0

215.0

269.0

20-∮26

20-∮33

229.0

172.5

DN600

780.0

725.0

770.0

602.0

1225.0

215.0

269.0

20-∮30

20-∮36

267.0

276.6

Materials List


Name

Materials

Body

Cast Iron,Ductile Iron,Carbon Steel,Stainless Steel   304,Stainless Steel 316,Stainless Steel 316L

Disc

Ductile Iron Coated by Nylon,Ductile Iron Coated by   Nickel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316L,Duplex   Stainless Steel,Aluminum Bronze

Seat

EPDM,NBR,Wear-resistant EPDM,High-temperature   EPDM,Fluorine Rubber,Silicon rubber

Stem

Carbon Steel 45#,Stainless Steel 304,Stainless Steel 316,Stainless Steel 416
