Globe Valve

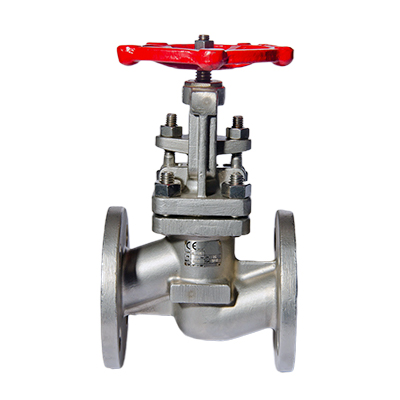

Model JVF-300LB/20K Globe Valve


FEATURES

  • FACE TO FACE DIMENSION: JIS B2002 1 ANSI B16.10
  • END FL ANGE DIMENSION: JIS B2220 I ANSI B16.5
  • DESIGN: ANSI B16,34
  • TEST: JIS B2003 I API 598
  • INVESTMENT CASTING BODY
  • JIS 20K: TC332/C333
  • ANSI 300LB: TC335/TC336
Category:

PARAMETERS


MATERIALS LIST

NO. PART NAME MATERIAL
TC332 TC333
TC335 TC336
1 BODY SCS13/CF8 SCS14/CF8M
2 DISC SCS13/CF8 SCS14/CF8M
3 BOLT SUS3O4
4 NUT SUS3O4
5 CAP SCS13/CF8 SCS14/CF8M
6 HINGE PIN SUS304
7 EYE BOLT SUS304
8 GLAND SUS13/CF8
9 EYE NUT SUS3O4
10 HANDLEWHEEL FCD
11 NUT BRONZE
12 STEM SUS304 SUS316
13 NAMEPLATE SUS304
14 GASKET BRONZE
15 YOKE SLEEVE BRONZE
16 SPRING WASHER SUS304
17 SLEEVE PTFE
18 PACKING PTFE
19 GASKET 304+GRAPHITE

TEST PRESSURE

SHELL(BY   WATER) ANSI-300LB
1125PSI 5.1   MPa
80kg/cm² 52kg/cm²
SEAT BY WATER 825PSI 3.8   MPa
58kg/cm² 39kg/cm²
BY AIR 85PSI 0.6 MPa
652kg/cm² 652kg/cm²

DIMENSIONS

Dimensions

SIZE d L H W D C G T N-∅M
DN MPS 20K 300 TOK 300 70K 300 20K 300 20K 300
15 1/2" 15 140 236 120 95 95 70 66.5 51 35 14 14.3 4-∅15 4-∅16
20 3/4” 20 152 236 120 100 117 75 82.5 56 43 16 15.9 4-∅15 4-∅19
25 1" 25 165 236 120 125 124 90 89.0 67 51 16 17.5 4-∅19 4-∅19
40 11/2* 40 190 355 250 140 156 105 114.5 81 73 18 20.17 4-∅19 4-∅22
50 2" 50 216 384 250 155 165 120 127 96 92 18 22.3 8-∅19 8-∅19
65 21/2" 65 241 454 250 175 190 140 149 116 105 20 25.4 8-∅19 8-∅22
80 3" 80 283 500 250 200 210 160 168 132 127 22 28.6 8-∅23 8-∅22
100 4" 100 305 609 300 225 254 1S5 200 160 157 24 31.8 B-∅23 8-∅22
125 5" 125 381 630 300 270 279 225 235 195 186 26 35 8-∅25 8-∅22
150 6" 150 403 792 350 305 318 260 270 230 216 28 36.6 12-∅25 12-∅22
200 8" 200 419 998 400 350 381 305 330 275 270 30 41.3 12-∅25 12-∅25
250 10* 250 457 1257 500 430 444 380 387.5 345 324 34 47.7 12-∅27 16-∅29
300 12" 300 502 1507 500 480 521 430 451 395 381 36 50.8 16-∅27 16-∅32
