JZF-PN16 buy JZF-PN16 online

Angle Seat Valve

Model JZF-PN16

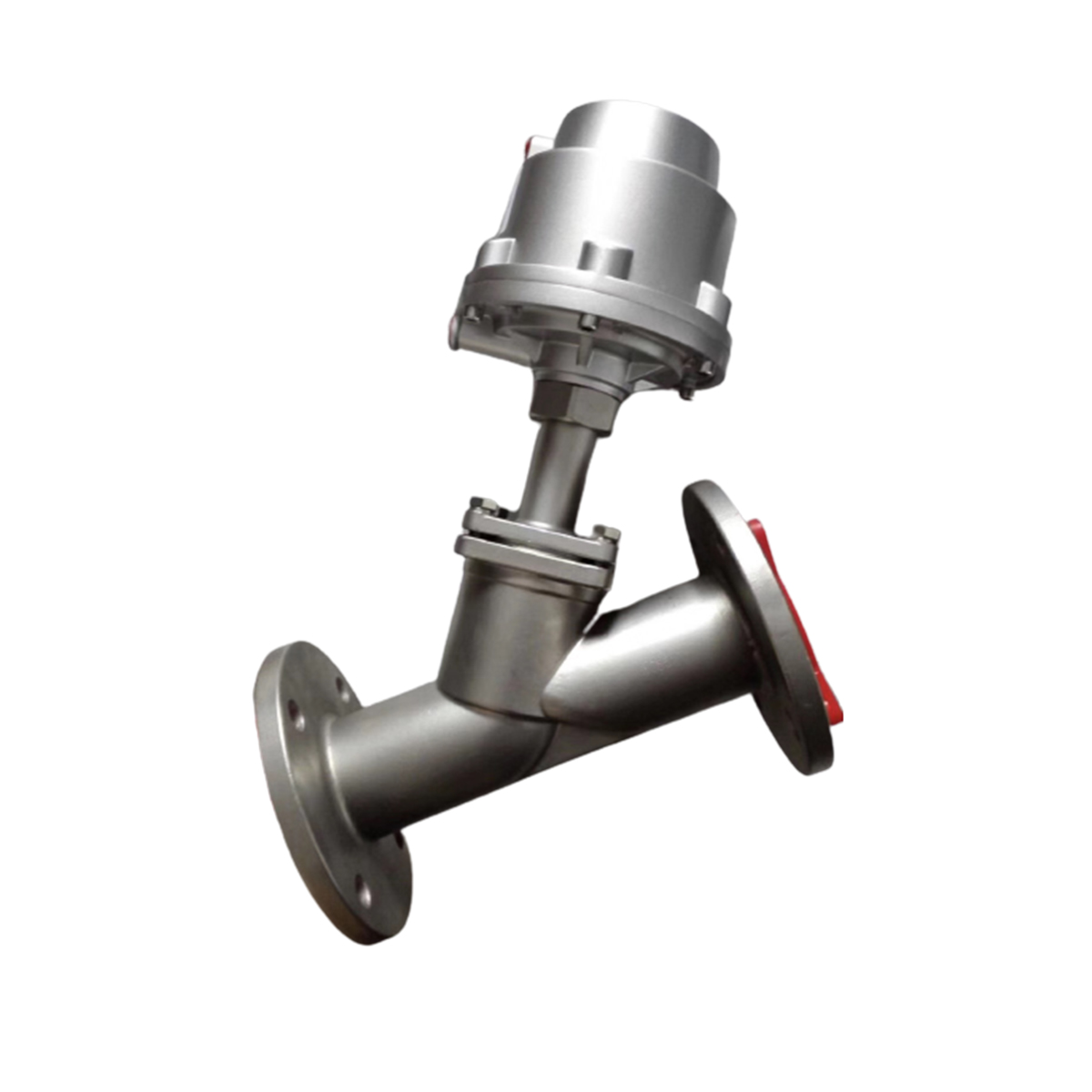

JZF-PN16 Flange angle seat valve

Function Principle

Angle seat valve is closed/open with a spring force. When the piston is actuated by compressed air, the angle seat valve is open/closed. The angle seat valve is open and closed by compressed air in the case of double acting type.

Applications

  • Beer & Drinks Flling Machinery
  • Textile Printing & Dyeing
  • Gas Industry
  • Pharmacy & Medical Equipment
  • Chemical Industry
  • Disinfection
  • Frothing Equipment
  • Water/Sewage Disposal

Advantages

  • Large Flux,low Resistance, No Water-hammer
  • Y-type Shape Enlarged The Flowing Section, which Could Raise The Flux By 30% And Make Flow More Smooth.
  • Super Long Life
  • Which Help The Stem Adjust And Lubricate itself Automatically.
  • The Cylinder Ma terial Is Stainless Steel. lubricating Automatically, 360° Rolling Freely.

Dimension

size actuator (mm) Q A B L C H ∅E ∅F ∅M ∅N ∅P 𝛼
DN15 50 1/8" 145 140 150/130 2 14 65 4-∅14 16 45 95 45°
DN20 50 1/8" 165 140 160/150 2 14 75 4-∅14 19 56 105 45°
DN25 50 1/8" 170 145 160 2 14 85 4-∅14 26 65 115 45°
63 1/8" 190 175
DN32 63 1/8" 190 18B 195/180 2 16 100 4-∅18 31 78 140 45°
90 1/8" 230 235
DN40 63 1/8" 206 190 200 3 16 110 4-∅18 38 84 150 45°
90 1/8" 250 240
DN50 63 1/8" 235 195 230 3 16 125 4-∅18 49 100 165 45°
90 1/8" 277 245
125 AL 1/4" 333 310
DN65 90 1/8" 330 280 290 3 18 145 4-∅18 66 120 185 45°
125AL 1/4" 375 330
DN80 125AL 1/4" 380 355 310 3 20 160 8-∅18 78 135 200 22.5°
DN1100 125 AL 1/4" 410 382 350 3 20 180 8-∅18 96 155 215 22.5°
