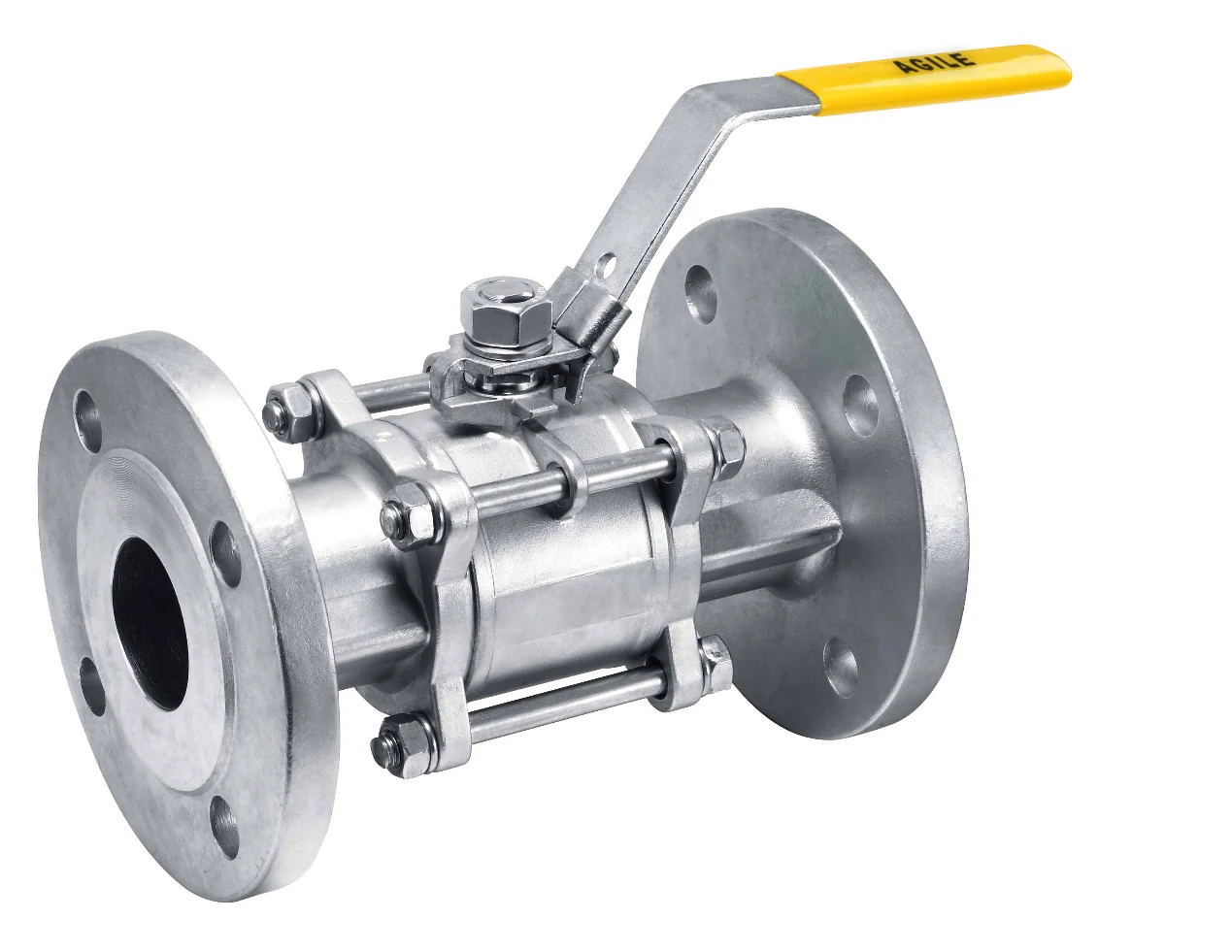

Flange Ball Valve
Model JD-3DF
SIZE: 15A~100A
full port three pieces mount pad direct type flange end ball valve
Features
- blow-out proof stem
- ISO5211 mounting device
- working presure (CWP): PN16 bar/PN40 bar 1/2"~4"(DN15~DN100)
- Temperature range: -20 to 180℃
- Locking device
- Flange Dimentions：DIN 2543 PN16/DIN 2545 PN40(EN 1092-1 RF)
- Flange Length: EN 558-1/ F1
- Category: Ball Valve, Flange Ball Valve
Request a quote for JD-3DF Flange Ball Valve
Include your required size, connection, operating pressure, temperature, media and quantity. Reference the model above so we can review the configuration for your application.
