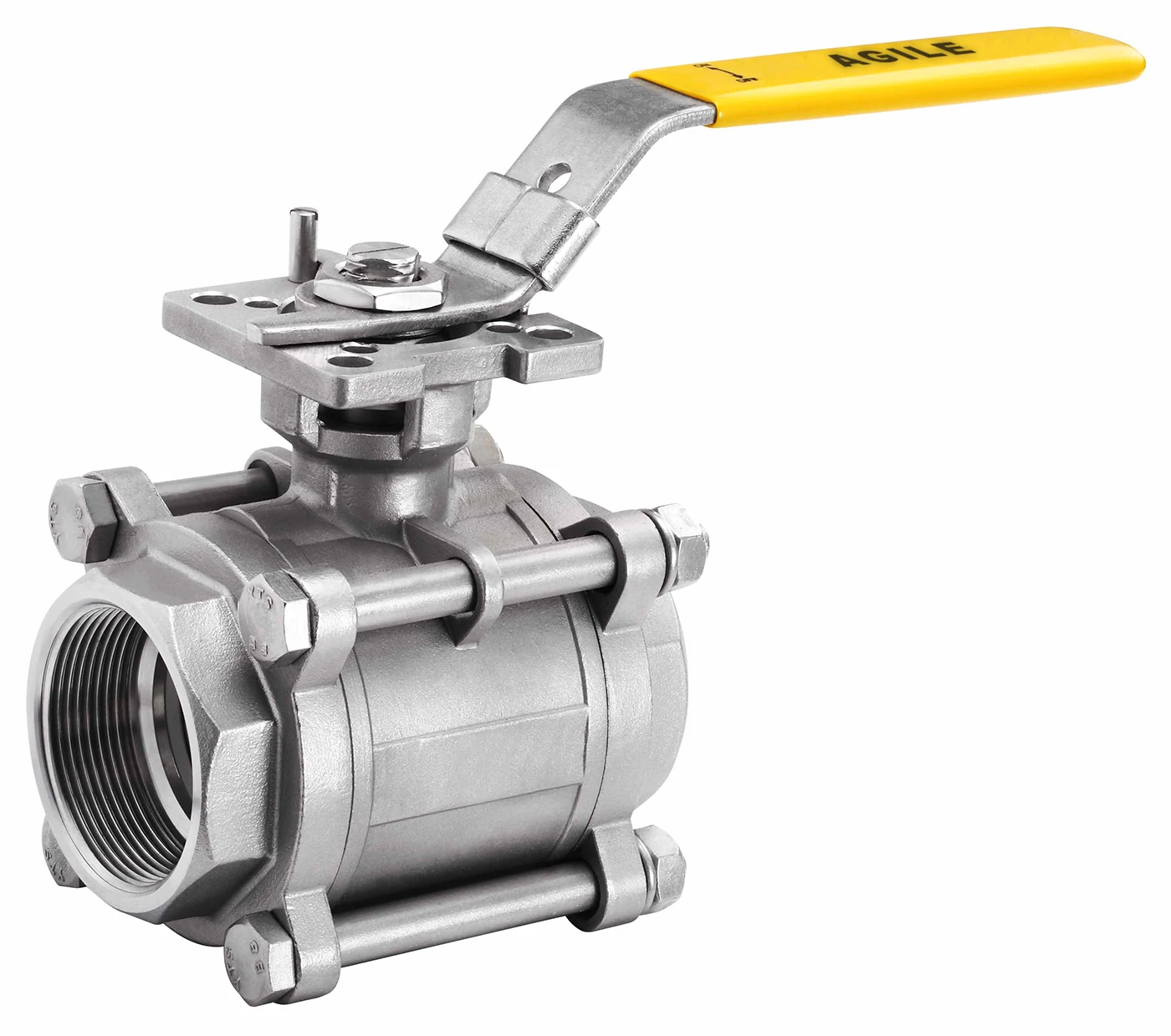

Three Piece Ball Valve
Model V-358
SIZE: 1/4"~4"(DN8~DN100)
full port three pieces weld ball valve
Features
- blow-out proof stem
- Temperature range: -20 to 180℃
- working presure (CWP):DN8~DN50 1000psi DN65~DN80 800psi
- ISO5211 direcr mounting pad
- end connections: Threaded end, socket weld end, butt weld end
- Locking device
- Pipe thread in accordance:ANSI B1.20.1(NPT)/DIN 259/DIN 2999/ISO 228/BSP/PT
- Category: Ball Valve, Three Piece Ball Valve
Request a quote for V-358 Three Piece Ball Valve
Include your required size, connection, operating pressure, temperature, media and quantity. Reference the model above so we can review the configuration for your application.
