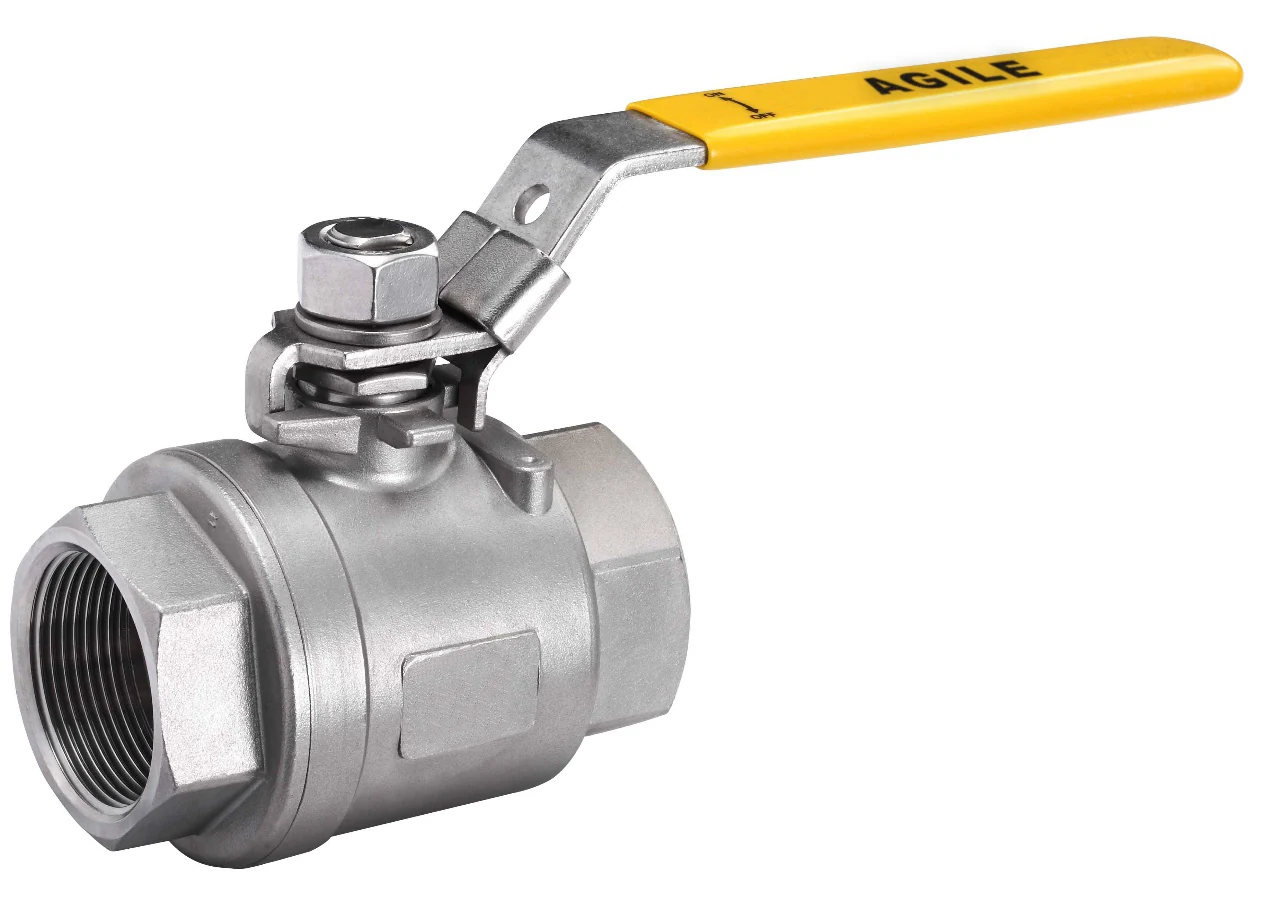

Two Piece Ball Valve
Model V-2AM3
SIZE: 1/4"~3"(DN8~DN80)
full port two pieces ball valve screwed end
Features
- blow-out proof stem
- ISO5211 direcr mounting pad
- Temperature range: -20 to 180℃
- working presure (CWP):DN8~DN25 2000psi DN32~DN50 1500psi DN65~DN80 1000psi
- Pipe thread in accordance:ANSI B1.20.1(NPT)/DIN 259/DIN 2999/ISO 228/BSP/PT
- Locking device
- Length: DIN 3202 M3
- Category: Ball Valve, Two Piece Ball Valve
Request a quote for V-2AM3 Two Piece Ball Valve
Include your required size, connection, operating pressure, temperature, media and quantity. Reference the model above so we can review the configuration for your application.
