620D7A1X-10/16P buy 620D7A1X-10/16P online

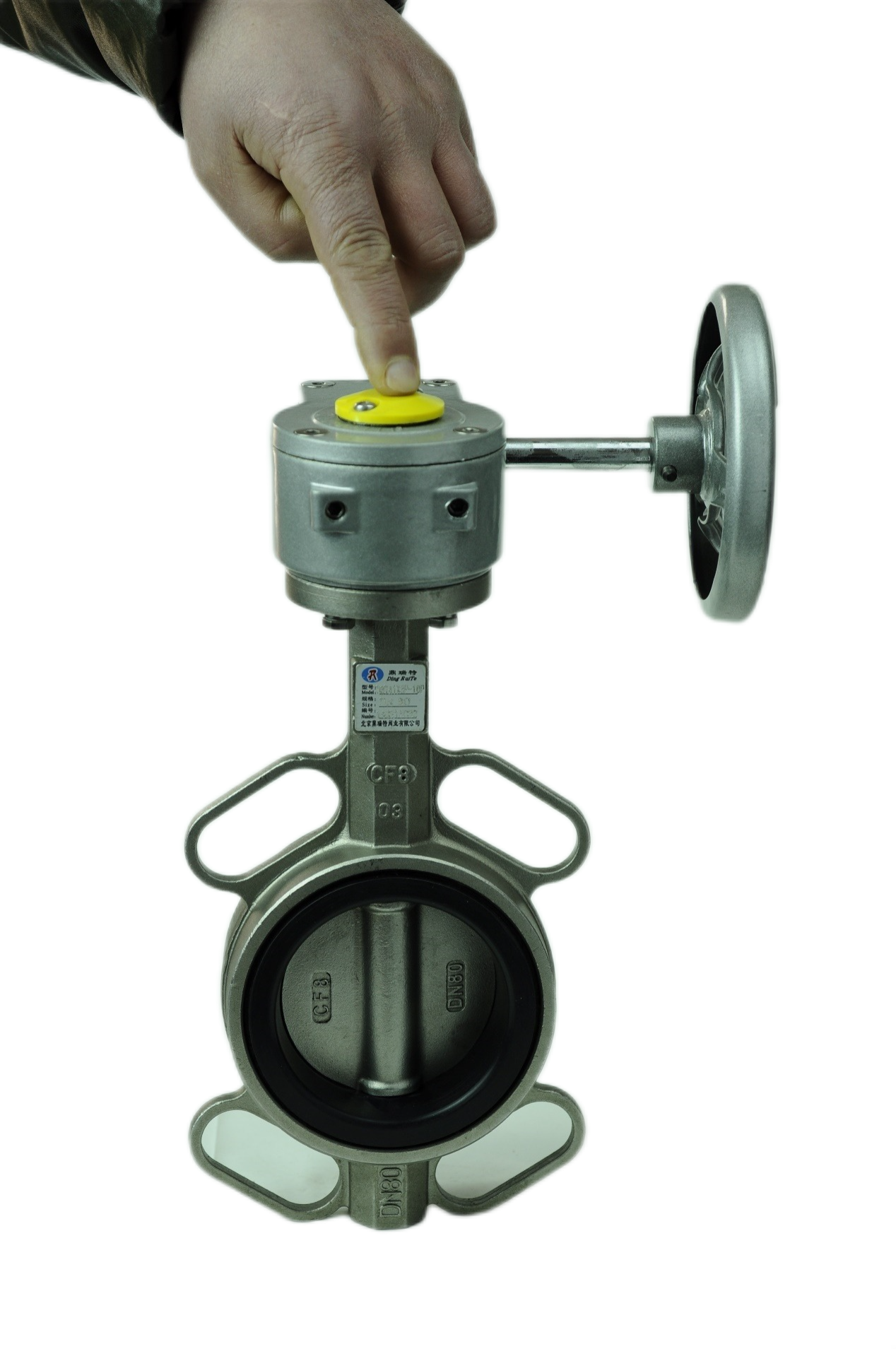

Turbine Butterfly Valve

Model 620D7A1X-10/16P


620D Wafer type stainless steel turbine butterfly valve

Features

  • Normal Diameter(mm): DN50-DN150
  • Normal Diameter(Mpa): PN1.0-1.6MPa
  • Applicable medium: Water,Sea Water,Sewage,Oil,Air,Food,Weak acid and soda etc.
  • Applicable temperature: -10~110℃

Dimensions


Standard

H2

H3

Φd1

Φd2

ΦD1

ΦD2

L1

L2

B

D0

DN40

162

55.5

19

19

98.5

110

33.5

30

148

120

DN50

180

59

19

19

107

125

42

32

148

120

DN65

192

68

19

19

119

145

45

47

148

120

DN80

205

88

23

24

154.5

155.75

45

65

148

120

DN100

227

102.5

19

19

175

190.5

52

91

148

120

DN125

247

117

23

23

210

216

55

112

148

120

DN150

267

130

23.4

240

56

146

148

120

DN200

301

166

24.6

25

292

296

61

194

193

220

DN250

340

195.5

30

357

66

242

193

220

DN300

383

235

25

26

400

432

77

292

210

250

Name

Materials

Body

Stainless Steel 304,Stainless Steel   316,Stainless Steel 316L

Disc

Stainless Steel 304,Stainless Steel 316,Stainless Steel   316L,Duplex Stainless Steel

Seat

EPDM,NBR,PTFE,Wear-resistant EPDM,High-temperature   EPDM,Fluorine Rubber,Silicon rubber

Stem

Stainless Steel 416,Stainless Steel 316,Stainless Steel 304

OEM Custom Valve Solutions

Agile Valves Co., Ltd. is one of the most successful and high quality OEM valves manufacturers in China. Our excellent valve manufacturing facilities located at our Shanghai valve factory and Taiwan valve factory are manufacturing and exporting stainless steel butterfly valves of all types all around the world. If you are looking for high-performance butterfly valves such as hand lever butterfly valve, turbine butterfly valve, etc, we are here to provide you with the best selection of our valves.

Besides several types of stainless steel butterfly valves, our manufacturing facilities in Shanghai and Taiwan also produce and export high quality flange ball valvemulti way ball valveone-piece ball valvetwo-piece ball valvethree-piece ball valve, or V flow control ball valve, safety valves, carbon steel valves, low temperature valves, stainless steel valves, angle seat valves, flanged swing check valves and a variety of other OEM valves on demand. Apart from the mainstream valves, we also provide valve accessories such as Quick Connectors, Pipes and Unions. All our products meet the international standards as ISO, ANSI, API, DIN, GB, JIS, etc.

Please visit our valve product pages for more information on our valves, Shanghai valve factory and Taiwan valve factory.
