622D37L1X-10/16 buy 622D37L1X-10/16 online

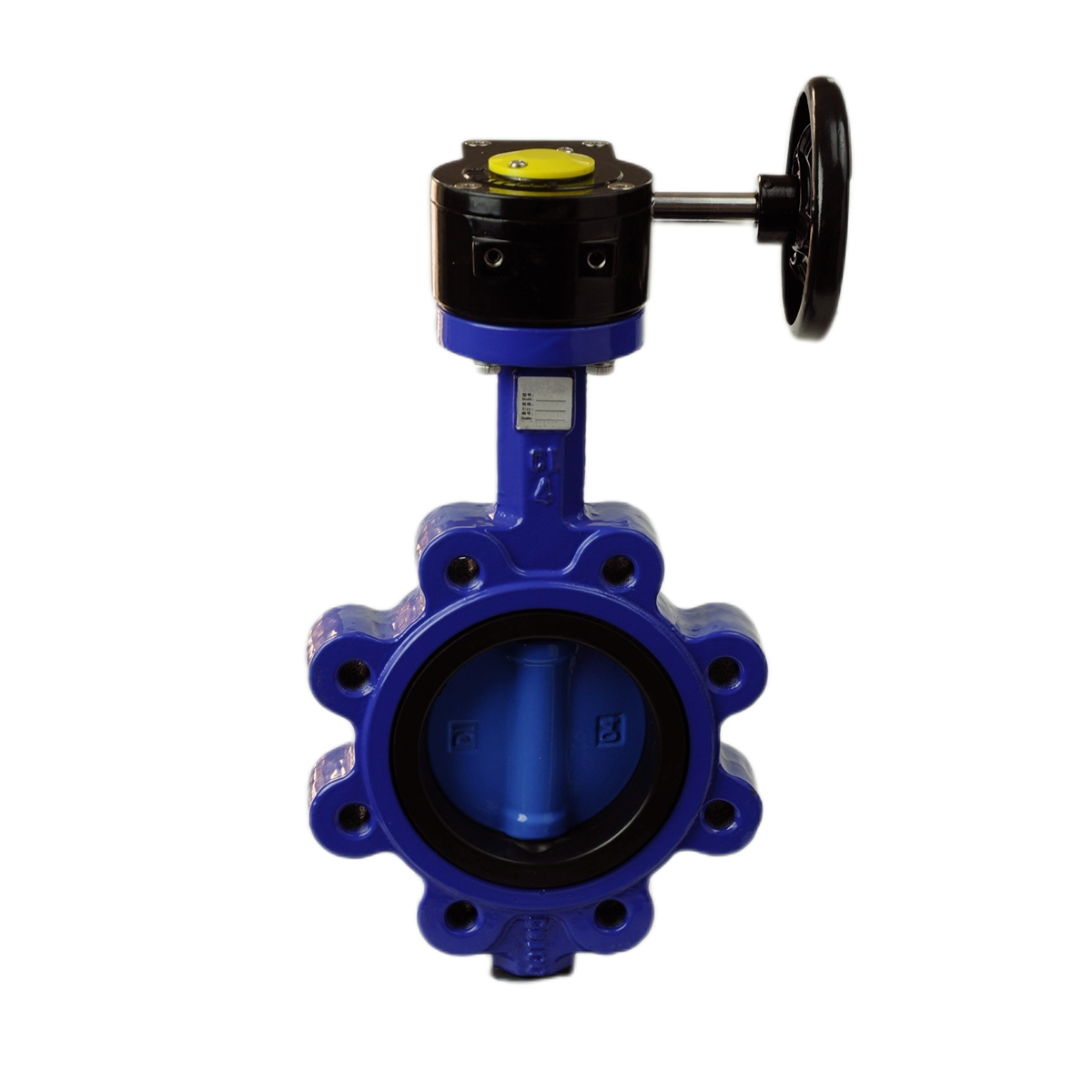

Turbine Butterfly Valve

Model 622D37L1X-10/16


622D Single clip type turbine butterfly valve

Features

  • Normal Diameter(mm): DN40-DN600
  • Normal Diameter(Mpa): PN1.0-1.6MPa
  • Applicable medium: Water,Sea Water,Sewage,Oil,Air,Food,Weak acid and soda etc.
  • Applicable temperature: -10~110℃

Dimensions


Standard

H3

n-M1

ΦD

L1

L2

A

B

D0

Weight (KG)

PN1.0

PN1.6

DN40

71

4-M16

4-M16

110

33.5

30

315

148

136

5.04

DN50

82.55

4-M16

4-M16

125

42

32

347

148

136

6.3

DN65

95.25

4-M16

4-M16

145

45

47

367

148

136

6.94

DN80

101.6

4-M16

8-M16

160

45

65

379

148

136

8.57

DN100

123.83

8-M16

8-M16

180

52

91

414

148

136

10.8

DN125

138.53

8-M16

8-M16

210

55

112

441

148

136

12.64

DN150

149.23

8-M20

8-M20

240

56

146

468

148

136

12.85

DN200

180.98

8-M20

12-M20

295

61

194

625.5

193

263

22.7

DN250

209.55

12-M20

12-M24

350

66

242

679

193

263

31.6

355

DN300

247.65

12-M20

12-M24

400

77

292

778

210

263

42.5

410

DN350

279.4

12-M20

16-M24

460

77

325

805

210

263

67.04

470

DN400

304.8

16-M24

16-M27

515

102

380

935

280

377

110.5

525

DN450

365.13

20-M24

20-M27

565

114

428

1004

280

377

133.1

585

DN500

371.48

20-M24

20-M30

620

130.3

474

1057

215

269

170.55

650

DN600

457.2

20-M27

20-M33

725

152

573

1264

215

269

292.25

770

Name

Materials

Body

Cast Iron,Ductile Iron,Carbon Steel,Stainless Steel   304,Stainless Steel 316,Stainless Steel 316L

Disc

Ductile Iron Coated by Nylon,Ductile Iron Coated by   Nickel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316L,Duplex   Stainless Steel,Aluminum Bronze

Seat

EPDM,NBR,PTFE,Wear-resistant EPDM,High-temperature   EPDM,Fluorine Rubber,Silicon rubber

Stem

Carbon Steel 45#,Stainless Steel 304,Stainless Steel 316,Stainless Steel 416

OEM Custom Valve Solutions

Agile Valves Co., Ltd. is one of the most successful and high quality OEM valves manufacturers in China. Our excellent valve manufacturing facilities located at our Shanghai valve factory and Taiwan valve factory are manufacturing and exporting stainless steel butterfly valves of all types all around the world. If you are looking for high-performance butterfly valves such as hand lever butterfly valve, turbine butterfly valve, etc, we are here to provide you with the best selection of our valves.

Besides several types of stainless steel butterfly valves, our manufacturing facilities in Shanghai and Taiwan also produce and export high quality flange ball valvemulti way ball valveone-piece ball valvetwo-piece ball valvethree-piece ball valve, or V flow control ball valve, safety valves, carbon steel valves, low temperature valves, stainless steel valves, angle seat valves, flanged swing check valves and a variety of other OEM valves on demand. Apart from the mainstream valves, we also provide valve accessories such as Quick Connectors, Pipes and Unions. All our products meet the international standards as ISO, ANSI, API, DIN, GB, JIS, etc.

Please visit our valve product pages for more information on our valves, Shanghai valve factory and Taiwan valve factory.
