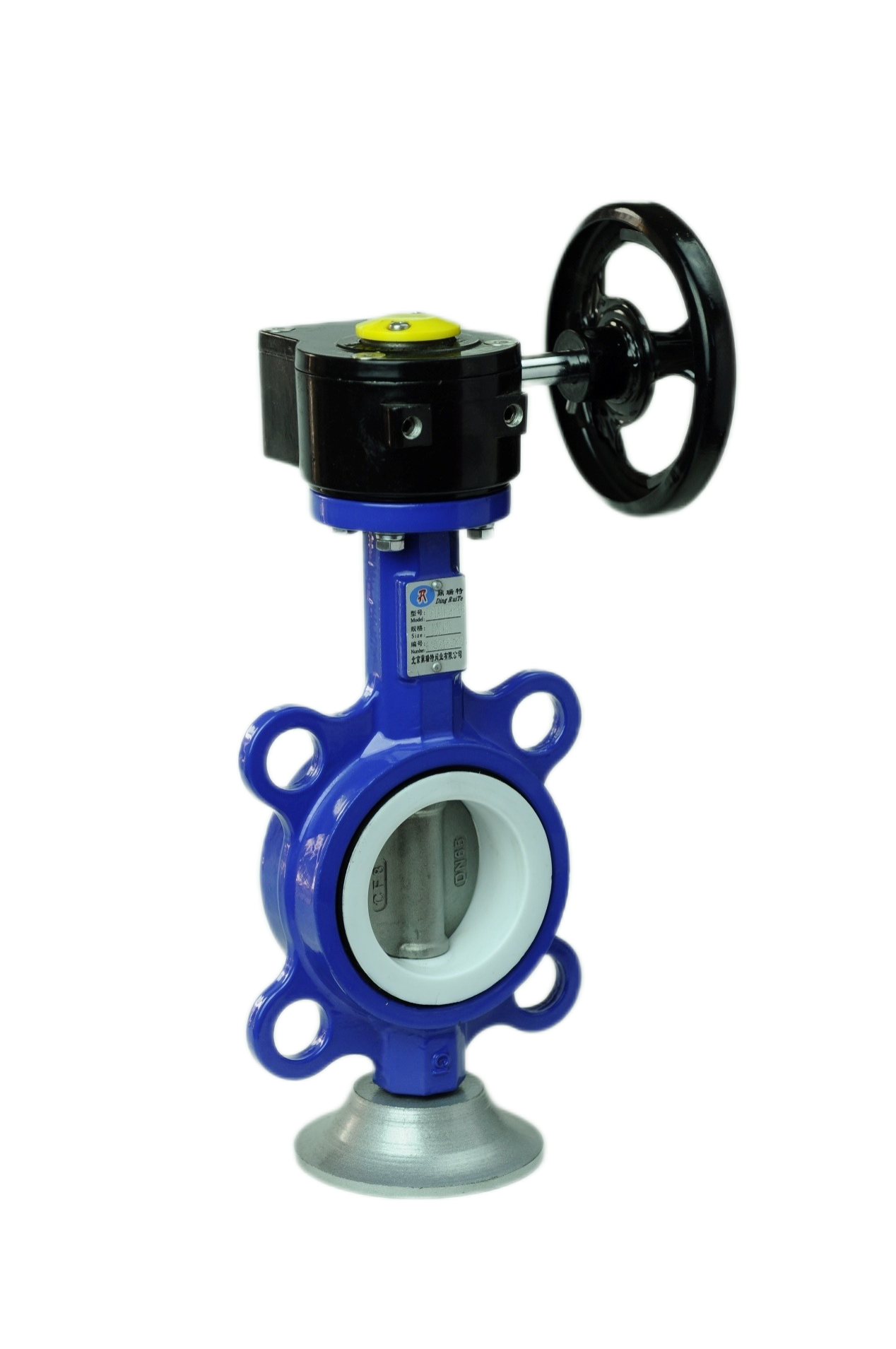

Turbine Butterfly Valve

Model 624D37A1FF-10/16


624D Wafer type fully lined fluorine turbine butterfly valve

Features

  • Normal Diameter(mm): DN40-DN400
  • Normal Diameter(Mpa): PN1.0-1.6MPa
  • Applicable medium: Water,Sea Water,Sewage,Oil,Air,Food,Weak acid and soda etc.
  • Applicable temperature: -40~150℃

Dimensions


Standard

A

B

Φd

ΦD1

D

L

B

D0

Weight(KG)

DN40

162

50

20

110

84

33

148

136

5.01

DN50

172

63

20

125

100

43

148

136

5.71

DN65

187

72

20

145

118

46

148

136

6.51

DN80

198

80

20

160

130

46

148

136

7.01

DN100

213

111

20

180

157

52

148

136

9.15

DN125

232

124

20

210

177

56

148

136

11.05

DN150

252

138

23

240

206

56

148

136

13.05

DN200

296

171

23

295

258

60

193

263

21.62

DN250

344

209

23

350

315

68

193

263

31.62

26

355

DN300

364

230

23

400

366

78

210

263

39.51

26

410

DN350

399

261

23

460

415

78

210

263

58.51

26

470

DN400

440

285

26

515

470

102

280

377

102.06

30

525

Name

Materials

Body

Carbon Steel,Stainless Steel 304,Stainless Steel   316,Stainless Steel 316

Disc

Carbon Steel+F4,Stainless Steel 304+F4,Stainless Steel   316+F4,Stainless Steel 316L+F4,Stainless Steel 304,Stainless Steel 316,Stainless   Steel 316L

Seat

PTFE

Stem

Stainless Steel 304,Stainless Steel 316,Stainless Steel   316L
