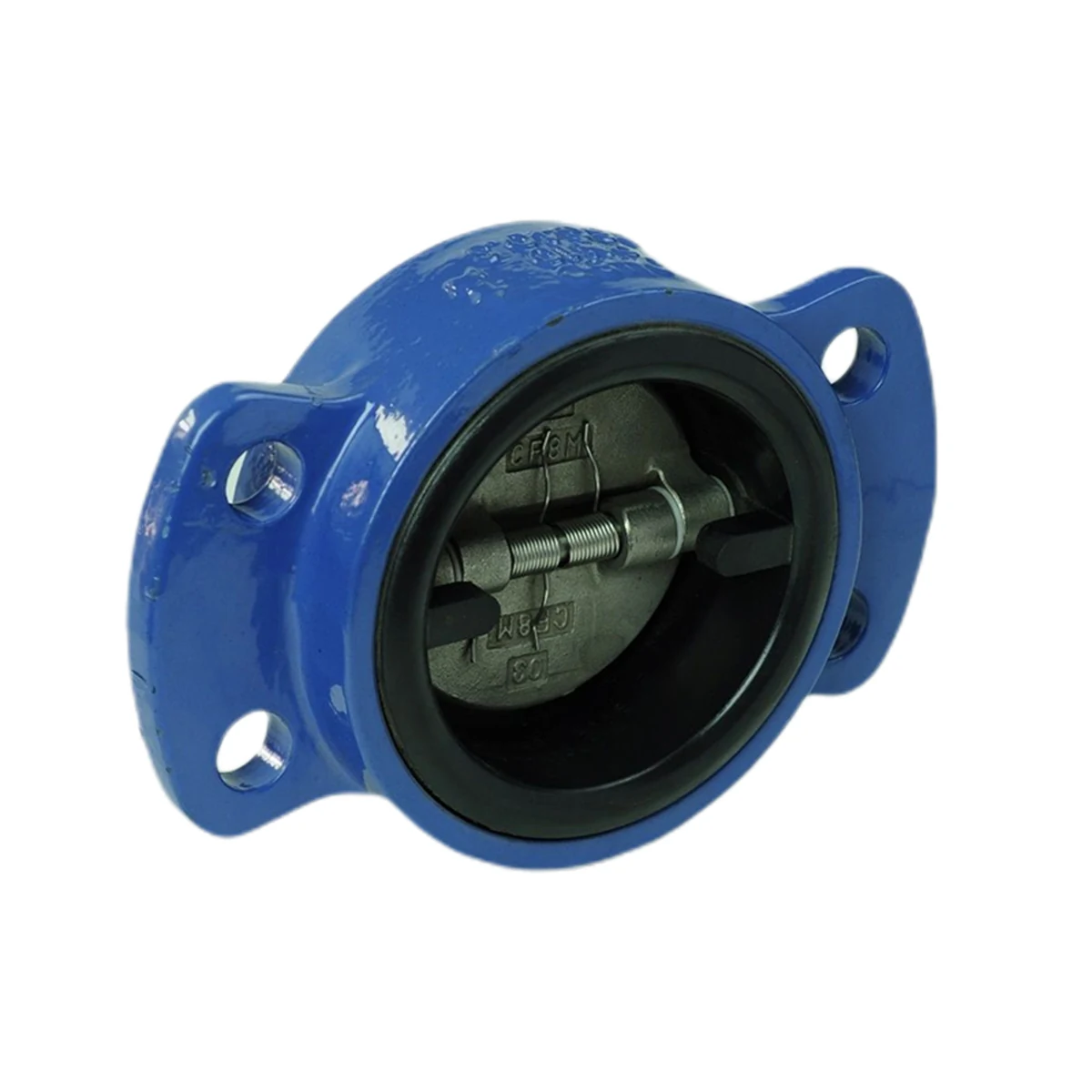

Water Type Check Valve
Model JD-ZHF103
Features
- Full-lining design for corrosive application.
- Small space available, easier installation, Quick closed to reduce water hammer situation.
- Cost Efficient, the cost would be less than swing type check valves, with the same functional operation.
- Diversity of connection types of international standards, depending on customers.
- Installation precaution will be shown on the each packed valves.
- Category: Check Valve, Water Type Check Valve
| Size Range | 1 1/2" ~ 36" ( DN40 ~ DN900 ) |
| Body Material | WCB/CF8/CF8M |
| WCB/SCS13/SCS14 | |
| WCB/1.4308/1.4408 | |
| Seat | EPDM/NBR |
| Specification | * Pressure Rating: 150#/300#/600# |
| PN6/PN10/16/PN25/40/PN50 | |
| JIS 5K / JIS 10K | |
| * Design is accordance with API 594 | |
| * Wall Thickness : API594 | |
| * Face to face according to API 594 | |
| * Flange Dimension: ASME B16.5 | |
| * Valve Test: API 598 |
OEM Valves Manufacturers
Agile Valves Co., Ltd. is one of the most successful and high quality OEM valves manufacturers in China. Our excellent valve manufacturing facilities located at our Shanghai valve factory and Taiwan valve factory are manufacturing and exporting stainless steel butterfly valves of all types all around the world. If you are looking for high-performance butterfly valves such as hand lever butterfly valve, turbine butterfly valve, etc, we are here to provide you with the best selection of our valves.
Besides several types of stainless steel butterfly valves, our manufacturing facilities in Shanghai and Taiwan also produce and export high quality flange ball valve, multi way ball valve, one-piece ball valve, two-piece ball valve, three-piece ball valve, or V flow control ball valve, safety valves, carbon steel valves, low temperature valves, stainless steel valves, angle seat valves, flanged swing check valves and a variety of other OEM valves on demand. Apart from the mainstream valves, we also provide valve accessories such as Quick Connectors, Pipes and Unions. All our products meet the international standards as ISO, ANSI, API, DIN, GB, JIS, etc.
Please visit our valve product pages for more information on our valves, Shanghai valve factory and Taiwan valve factory.
