JD-ZHF106 buy JD-ZHF106 online

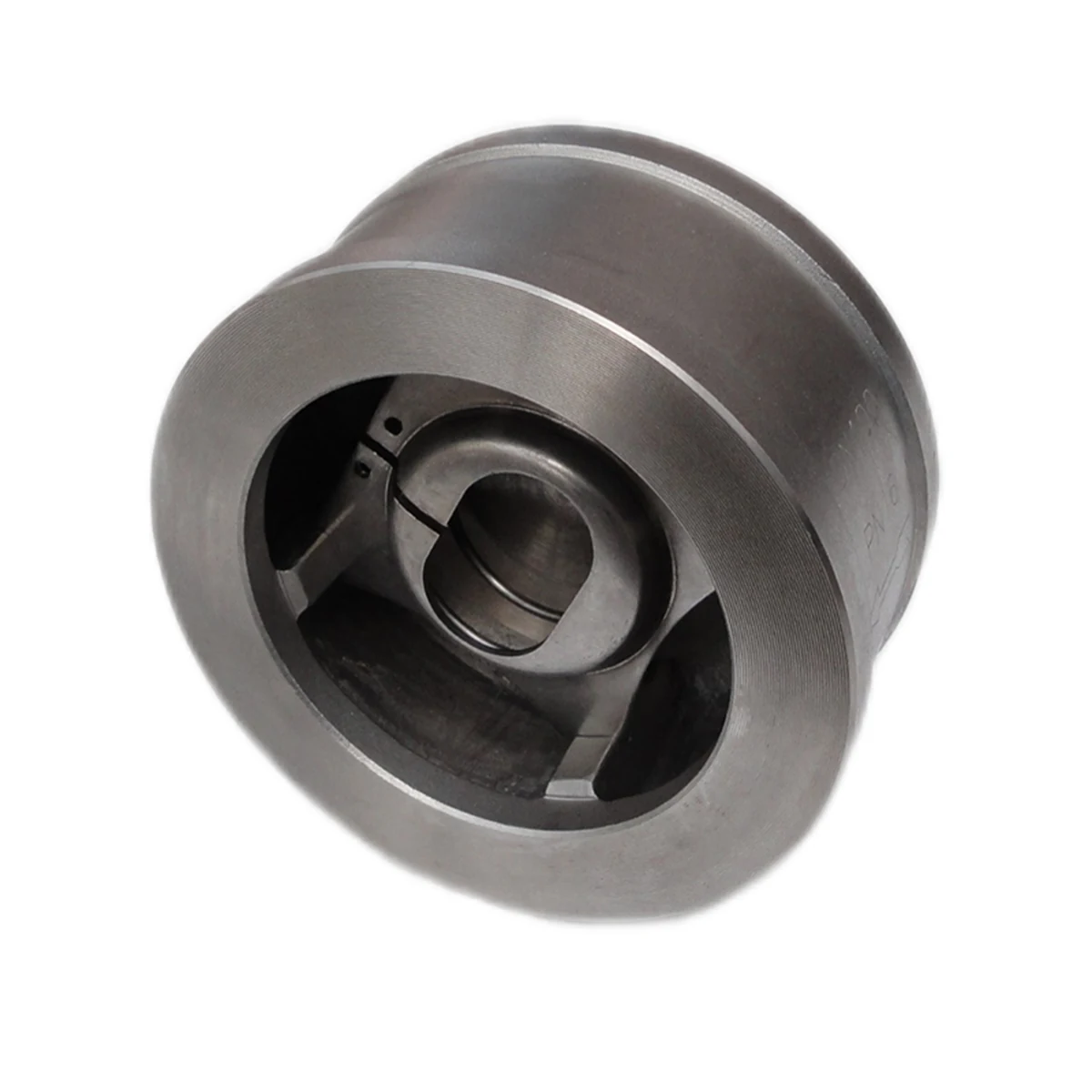

Water Type Check Valve

Model JD-ZHF106


Features

  • Wafer Check Valve, Spring Type.
  • Top-quality in stainless steel material.
  • Short-delivery.
  • Horizontal or Vertical Installation is available.
  • Low Pressure Drop.
  • Working pressure : DN15 ~ DN100 - PN40 bar, DN125 ~ DN200 - PN25 bar.
Size Range 1/2" ~ 8" ( DN15 ~ DN200 )
Pressure PN40/25
Connection Wafer Type
Body Material EN1503-1 1.4408
Spring SS316
Face To Face DIN 3202 K4
Specification Body Wall Thickness : EN 12516-1

OEM Valves Manufacturers

Agile Valves Co., Ltd. is one of the most successful and high quality OEM valves manufacturers in China. Our excellent valve manufacturing facilities located at our Shanghai valve factory and Taiwan valve factory are manufacturing and exporting stainless steel butterfly valves of all types all around the world. If you are looking for high-performance butterfly valves such as hand lever butterfly valve, turbine butterfly valve, etc, we are here to provide you with the best selection of our valves.

Besides several types of stainless steel butterfly valves, our manufacturing facilities in Shanghai and Taiwan also produce and export high quality flange ball valvemulti way ball valveone-piece ball valvetwo-piece ball valvethree-piece ball valve, or V flow control ball valve, safety valves, carbon steel valves, low temperature valves, stainless steel valves, angle seat valves, flanged swing check valves and a variety of other OEM valves on demand. Apart from the mainstream valves, we also provide valve accessories such as Quick Connectors, Pipes and Unions. All our products meet the international standards as ISO, ANSI, API, DIN, GB, JIS, etc.

Please visit our valve product pages for more information on our valves, Shanghai valve factory and Taiwan valve factory.
