GB-200 buy GB-200 online

Globe Valve

Model GB-200


FEATURES

  • PIPE THREAD IN ACCORDANCE: NPT, BSPT, DIN 259, DIN 2999, ISO 228 CL ASS A
  • INVESTMENT CASTING BODY
  • CLASS 200 W.O.G.

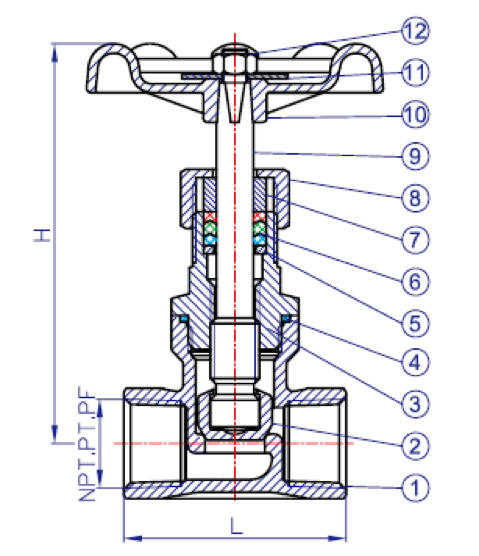

NO. PART NAME MATERIAL
TC411
1 BODY CF8M
2 DISC CF8M
3 CAP CF8M
4 GASKET PTFE
5 WHORL GASKET SUS304
6 PACKING PTFE
7 GLAND SUS304
8 CAP NUT CF8M
9 STEM SUS316
10 HANDLEWHEEL ALUMINUM
11 NAMEPLATE ALUMINUM
12 NUT SUS304

Dimensions
Dimensions

SIZE L H W
DN NPS
8 1/4" 52 95 70
10 3/8" 52 95 70
15 1/2" 52 95 70
20 3/4" 66 100 80
25 1" 76 110 80
32 11/4" 86 130 90
40 11/2" 94 130 100
50 2" 118 139 100

Low temperature valves manufacturer

Agile Valves Co., Ltd. is one of the most successful and high quality OEM valves manufacturers in China. Our excellent valve manufacturing facilities located at our Shanghai valve factory and Taiwan valve factory are manufacturing and exporting stainless steel butterfly valves of all types all around the world. If you are looking for high-performance butterfly valves such as hand lever butterfly valve, turbine butterfly valve, etc, we are here to provide you with the best selection of our valves.

Besides several types of stainless steel butterfly valves, our manufacturing facilities in Shanghai and Taiwan also produce and export high quality flange ball valvemulti way ball valveone-piece ball valvetwo-piece ball valvethree-piece ball valve, or V flow control ball valve, safety valves, carbon steel valves, low temperature valves, stainless steel valves, angle seat valves, flanged swing check valves and a variety of other OEM valves on demand. Apart from the mainstream valves, we also provide valve accessories such as Quick Connectors, Pipes and Unions. All our products meet the international standards as ISO, ANSI, API, DIN, GB, JIS, etc.

Please visit our valve product pages for more information on our valves, Shanghai valve factory and Taiwan valve factory.
