Globe Valve

Model ZVF-PN16


FEATURES

  • FACE TO FACE DIMENSION: GB/T 12221
  • END FL ANGE DIMENSION: GB /T 9113
  • DESIGN: ANSI B16.34
  • TEST: API598
  • INVESTMENT CASTING BODY
NO. PART NAME MATERIAL
DR325 DR326
1 BODY CF8 CF8M
2 DISC CF8 CF8M
3 BOLT SUS3O4
4 NUT SUS304
5 CAP CF8 CF8M
6 HINGE PIN SUS304
7 EYE BOLT SUS3O4
8 GLAND CF8
9 EYE NUT SUS3O4
10 HANDLEWHEEL FCO
11 NUT BRONZE
12 STEM SUS3O4 SUS316
13 NAMEPLATE SUS304
14 GASKET BRONZE
15 YOKE SLEEVE BRONZE
16 SPRING WASHER SUS304
17 SLEEVE PTFE
18 PACKING PTFE
19 GASKET *PTFE/304+GRAPH|TE
SHELL(BY WATER) 450PSI
32kg/cm²
SEAT BY WATER 315PSI
22kg/cm²
BY AIR 80PSI
6kg/cm²

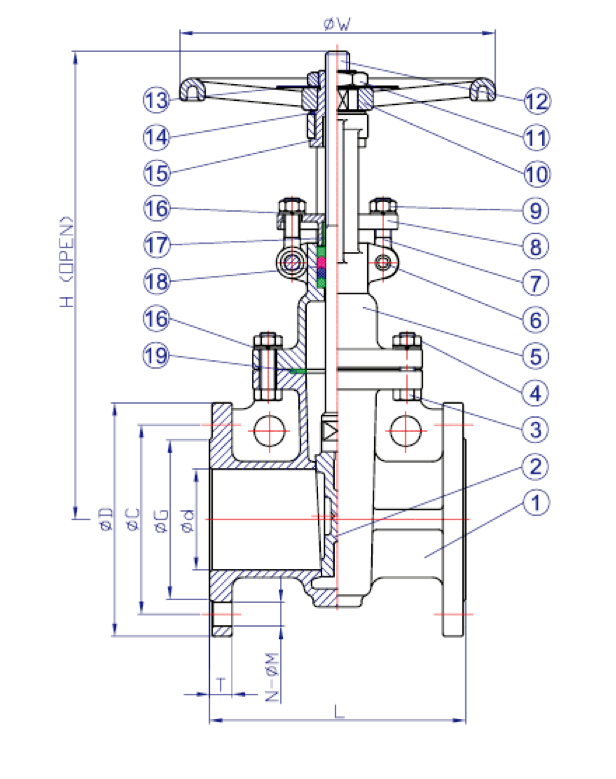

Dimensions

SIZE d L H W D C G T N M
DN NPS
15 1/2" 15 108 182 120 95 65 46 14 4 14
20 3/4 " 20 117 195 120 105 75 56 16 4 14
25 1" 25 127 237 120 115 85 65 16 4 14
32 11/4" 32 140 294 200 140 100 76 18 4 18
40 11/2" 40 165 294 200 150 110 84 18 4 18
50 2" 50 178 335 200 165 125 99 20 4 18
65 21/2" 65 190 393 200 185 145 118 20 4 18
80 3" 80 203 467 250 200 160 132 20 8 18
100 4" 100 229 549 250 220 180 156 22 8 18
125 5" 125 254 630 300 250 210 184 22 8 18
150 6" 150 267 743 300 285 240 211 24 8 22
200 8" 200 292 910 350 340 295 266 24 12 22
250 10" 250 330 1097 400 405 355 319 26 12 26
300 12" 300 356 1285 400 460 410 370 28 12 26
